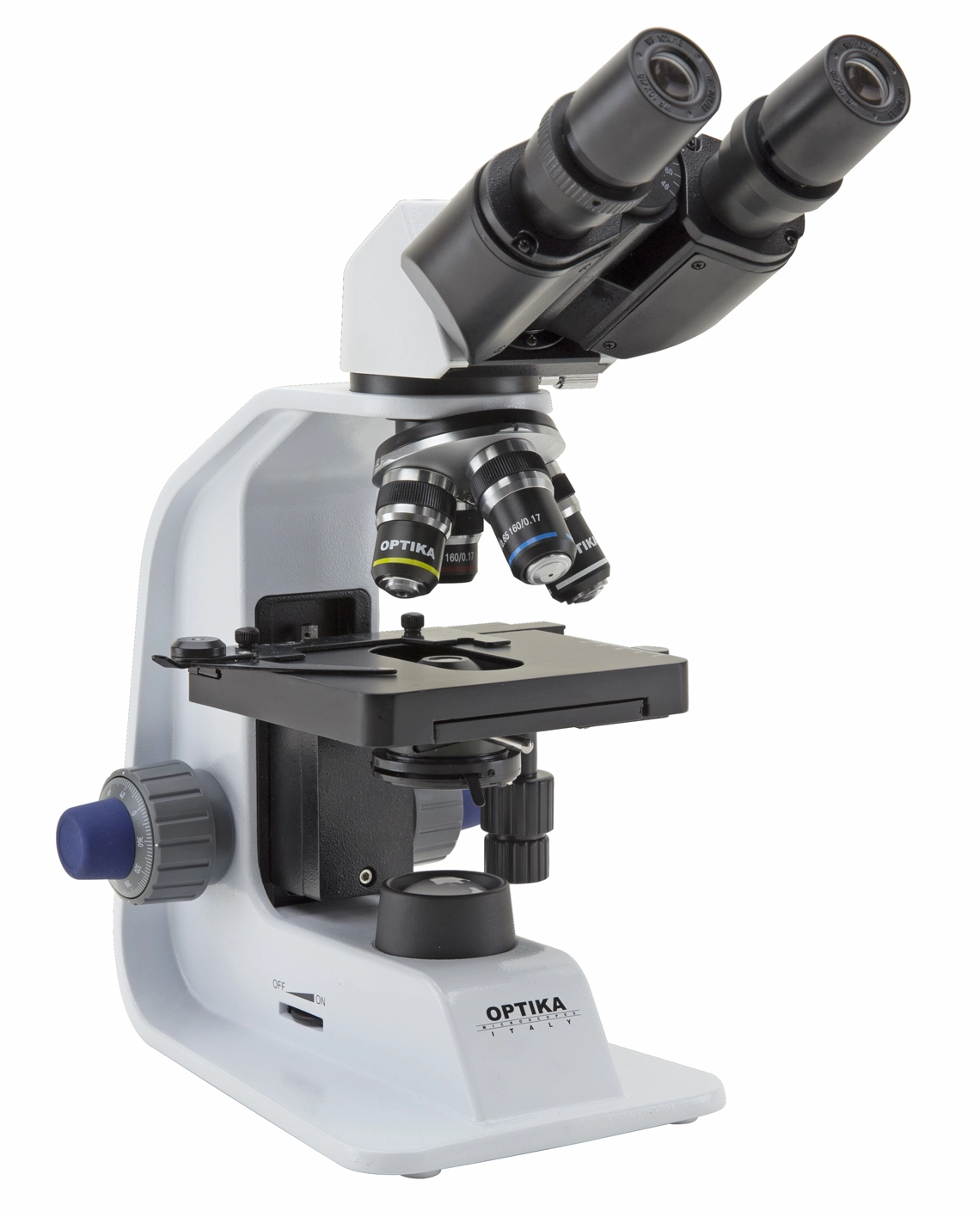

OPTIKA – Italy B-159 Binocular Microscope (1000x)

The OPTIKA B-159 Binocular Microscope is part of the B-150 series, designed for educational laboratories and training environments. It offers an excellent balance between optical quality, mechanical reliability, and affordability, making it ideal for students and teaching laboratories.

Category Microscopes

Features

Binocular Head: 30° inclined and 360° rotatable for comfortable viewing.

High Contrast Achromatic Optics: Four objectives with anti-fungus treatment.

Wide Magnification Range: From 40x up to 1000x.

FN18 High Eye Point Eyepieces: Wide field of view for easy observation.

Coaxial Focusing: Coarse and fine focusing with adjustable tension and safety stop.

Mechanical Stage: Precise X-Y movement with vernier scale.

Abbe Condenser: N.A. 1.25, pre-centered and focusable.

X-LED1 Illumination: Powerful and uniform white LED light.

Long Lifetime: LED illumination designed for over 20 years of use.

Slim and Portable Design: Easy to carry and suitable for classrooms.

Specifications

Observation Mode: Bright field

Head: Binocular, 30° inclined, 360° rotating

Eyepieces: WF10x/18 mm

Nosepiece: Quadruple ball bearing revolving nosepiece

Objectives: 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (Oil/Water)

Specimen Stage: Mechanical stage 125 × 116 mm, travel 70 × 30 mm

Focusing: Coaxial coarse and fine focusing with safety stop and adjustable tension

Condenser: Abbe N.A. 1.25, focusable with iris diaphragm

Illumination: X-LED1, white 1 W LED with brightness control

Color Temperature: 6300 K

Power Supply: 100–240 V AC / 5 V DC external adapter
