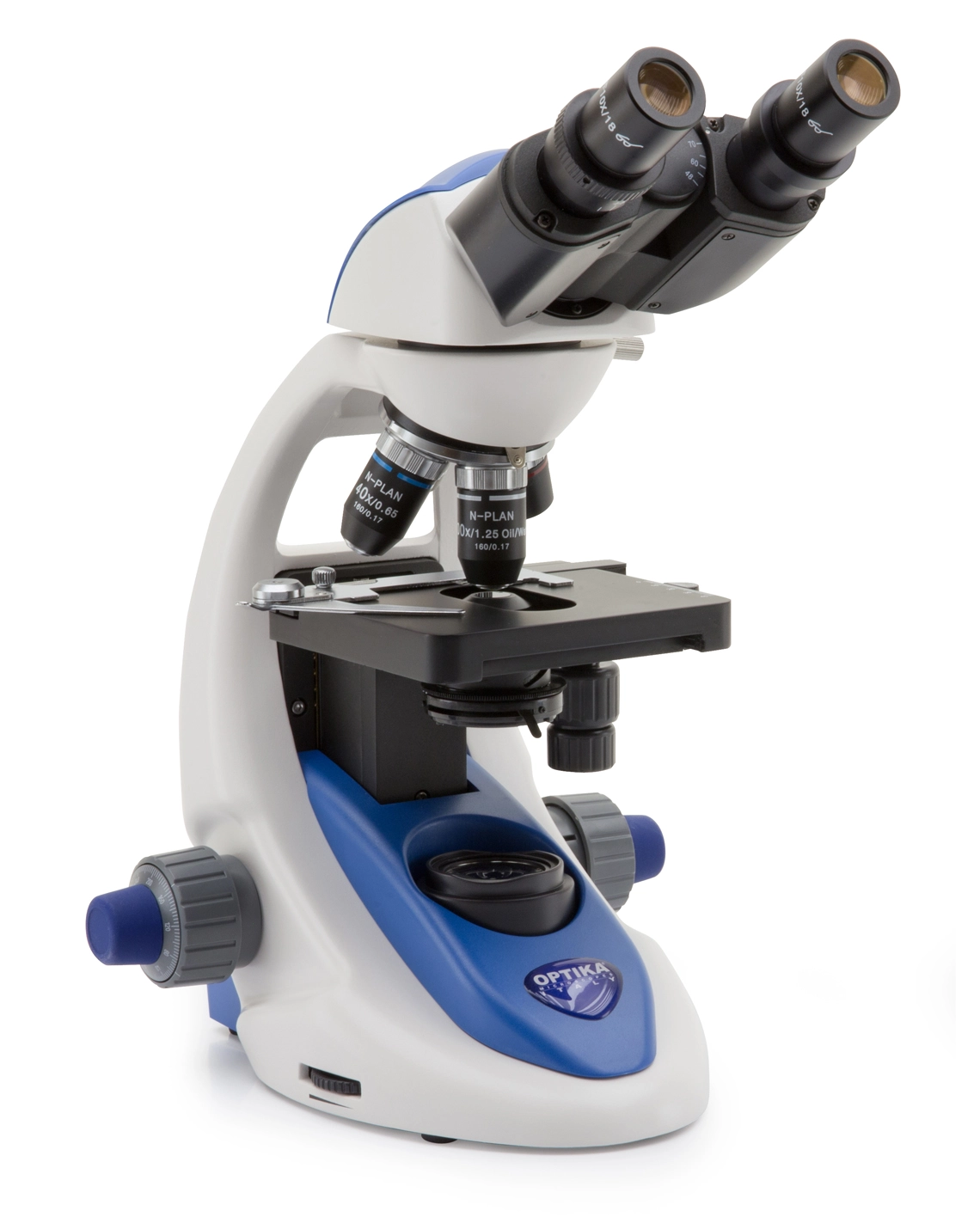

OPTIKA – Italy B-192PL Binocular LED Microscope (1000x)

The OPTIKA B-192PL Binocular LED Microscope belongs to the advanced B-190 series, combining high optical quality with modern design. It is designed for educational laboratories, teachers, and secondary schools, offering reliability, precision, and long-term performance.

Category Microscopes

Features

Binocular Head: 30° inclined and 360° rotatable with adjustable interpupillary distance.

N-PLAN Optics: Four high-quality objectives with anti-fungus treatment.

Wide Magnification Range: From 40x up to 1000x.

FN18 High Eye Point Eyepieces: Wide field of view for comfortable observation.

Coaxial Focusing: Coarse and fine focusing with safety limit stop and adjustable tension.

Double Layer Mechanical Stage: Smooth X-Y movement with vernier scale.

Abbe Condenser: N.A. 1.25, pre-centered and height adjustable.

X-LED² Illumination: Powerful 3 W white LED with uniform brightness.

Long Lifetime: LED system designed for over 20 years of use.

Sturdy and Ergonomic Design: Slim, easy to carry, yet highly resistant.

Specifications

Observation Mode: Bright field

Head: Binocular, 30° inclined, 360° rotating

Interpupillary Distance: 48 – 75 mm

Dioptric Adjustment: Left eyepiece

Eyepieces: WF10x/18 mm

Nosepiece: Quadruple revolving nosepiece with ball bearings

Objectives: N-PLAN 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (Oil/Water)

Specimen Stage: Double layer mechanical stage 125 × 115 mm, travel 70 × 30 mm

Focusing: Coaxial coarse and fine focusing with safety stop

Condenser: Abbe N.A. 1.25, adjustable with iris diaphragm

Illumination: X-LED², white 3 W LED with brightness control

Color Temperature: 6300 K

Power Supply: 100–240 V AC / 6 V DC external adapter
