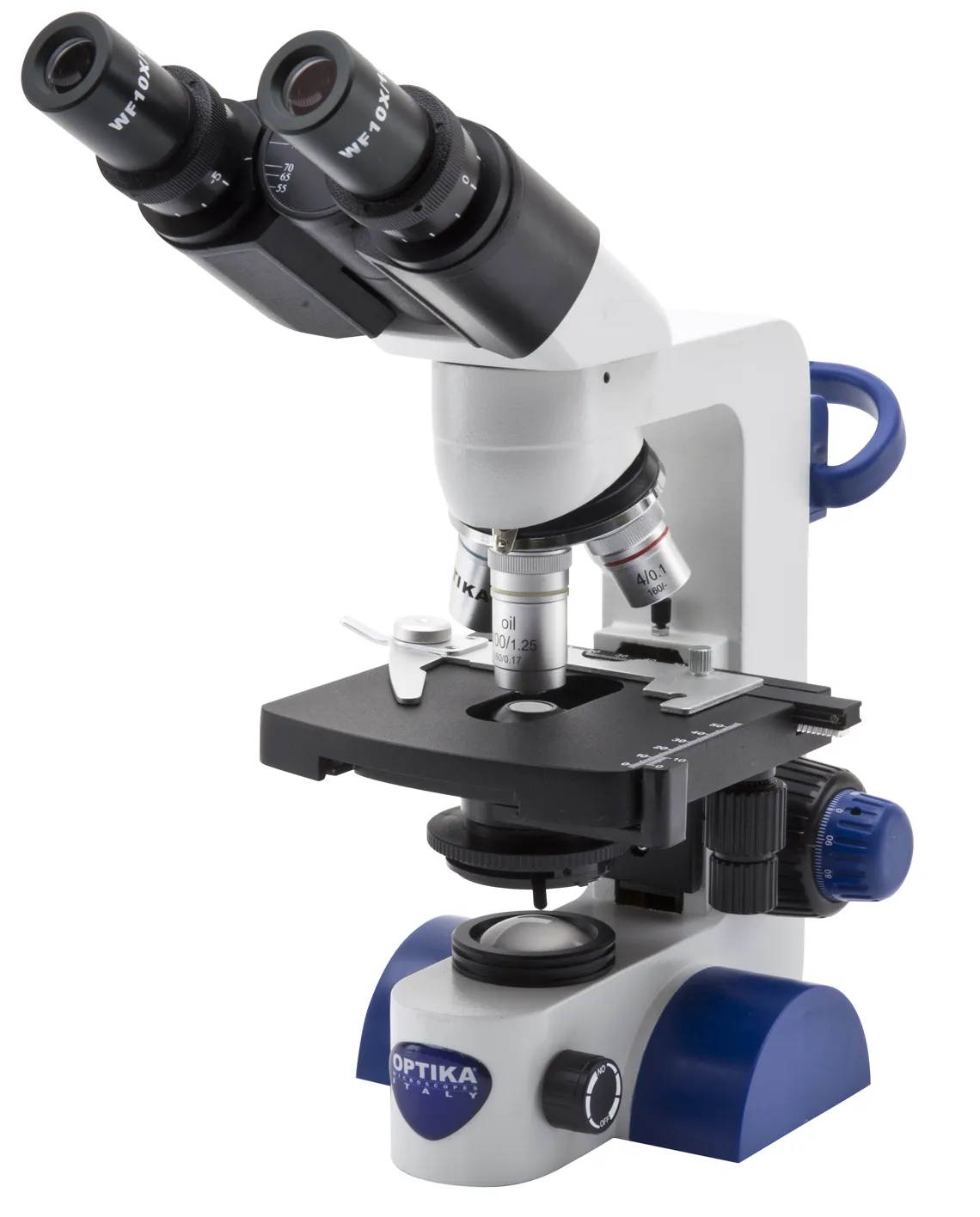

OPTIKA – Italy B-69 Binocular Microscope (1000x)

The OPTIKA B-69 Binocular Microscope is a professional optical instrument designed for educational and laboratory use. It provides reliable performance with a wide magnification range from 40x to 1000x, making it suitable for routine analysis and professional applications.

Category Microscopes

Features

Binocular Head: 30° inclined and 360° rotatable for comfortable observation.

Achromatic Optics: High-quality lenses with anti-fungus treatment.

Wide Magnification Range: From 40x up to 1000x.

FN18 Eyepieces: Provide a wide field of view.

Coaxial Focusing: Coarse and fine adjustment with safety limit stop.

Stag Erase™ Mechanical Stage: Erasable stage with precise X-Y movement.

Abbe Condenser: N.A. 1.25, pre-centered and focusable.

LED Illumination: 1 W LED with brightness control and long lifespan.

Ergonomic Design: Arm/wrist support reduces fatigue during long sessions.

Specifications

Observation Mode: Bright field

Head: Binocular, 30° inclined, 360° rotating

Dioptric Adjustment: Left eyepiece

Eyepiece: WF10x/18 mm

Nosepiece: Quadruple ball bearing revolving nosepiece (reversed)

Objectives: 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 (oil)

Specimen Stage: Stag Erase™ mechanical stage 125 × 125 mm, travel 62 × 24 mm

Focusing: Coaxial coarse and fine focusing with safety stop

Condenser: Abbe N.A. 1.25, focusable with iris diaphragm

Illumination: 1 W LED with brightness control

Color Temperature: 6300 K

Power Supply: 100–240 V AC / 5 V DC external adapter
